PILES Notation

Puzzle Input Line Entry System for piece fusion

Overview

PILES (Puzzle Input Line Entry System) is a SMILES-inspired notation for specifying which puzzle pieces should be fused together. It provides a concise, readable way to define fusion groups using piece IDs, ranges, and semantic keywords.

Basic Syntax

Single Fusion Group

Connect pieces with hyphens:

1-2-3     # Fuse pieces 1, 2, and 3

Multiple Groups

Separate groups with commas:

1-2,3-4,5-6   # Three separate fusion groups

Ranges

Use colon for consecutive ranges:

1:6       # Fuse pieces 1, 2, 3, 4, 5, 6

Examples

Rectangular Grid

# Standard
print(ggplot() +
  geom_puzzle_rect(
    aes(fill = after_stat(piece_id)),
    cols = 4, rows = 3,
    width = 300, height = 225,
    seed = 42
  ) +
  scale_fill_viridis_c(guide = "none") +
  coord_fixed() +
  theme_puzzle() +
  labs(title = "Standard"))

# With fusion
print(ggplot() +
  geom_puzzle_rect(
    aes(fill = after_stat(group_id)),
    cols = 4, rows = 3,
    width = 300, height = 225,
    seed = 42,
    fusion_groups = "1-2,5-6,11-12"
  ) +
  scale_fill_viridis_c(guide = "none") +
  coord_fixed() +
  theme_puzzle() +
  labs(title = "With fusion"))

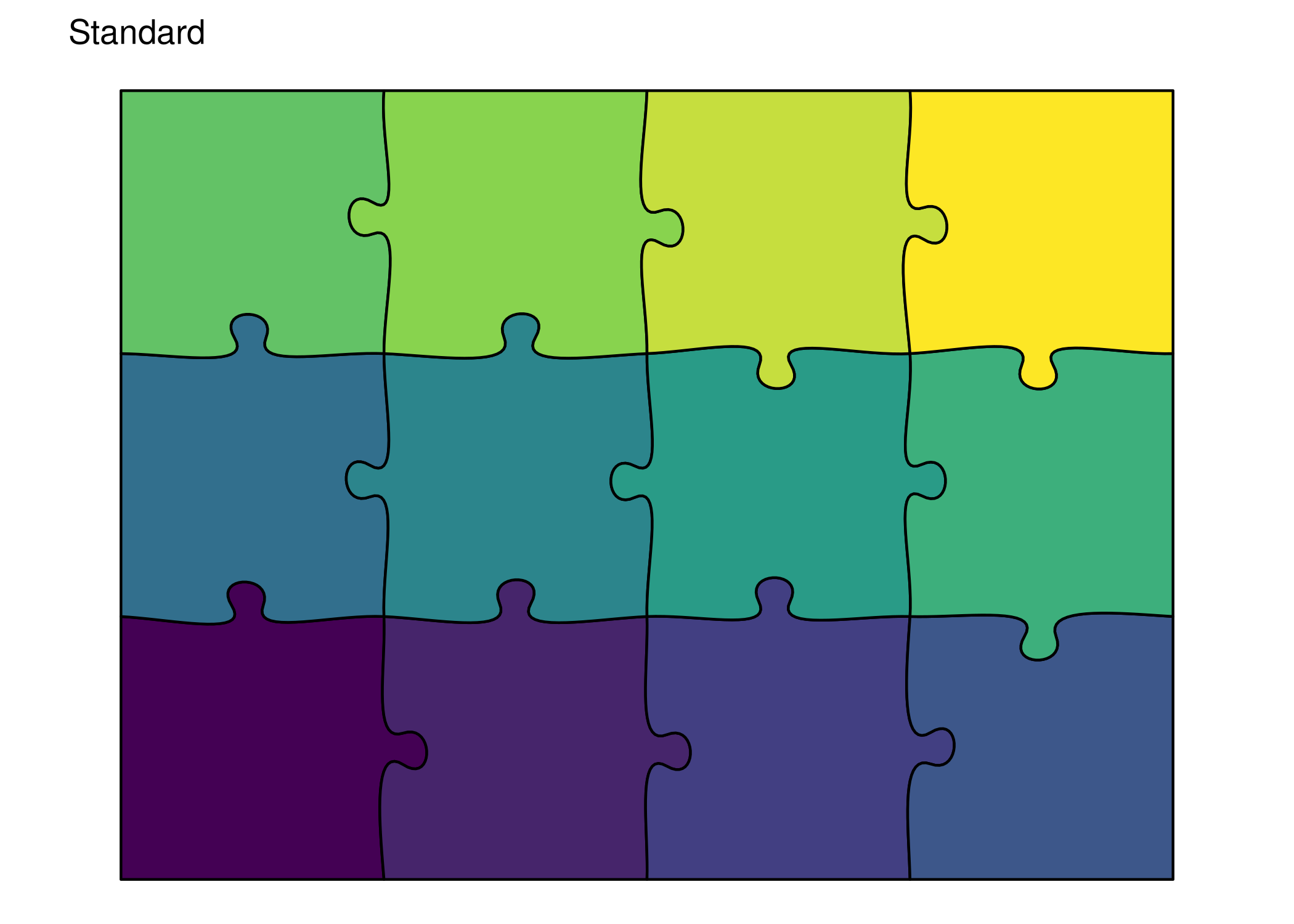

No fusion

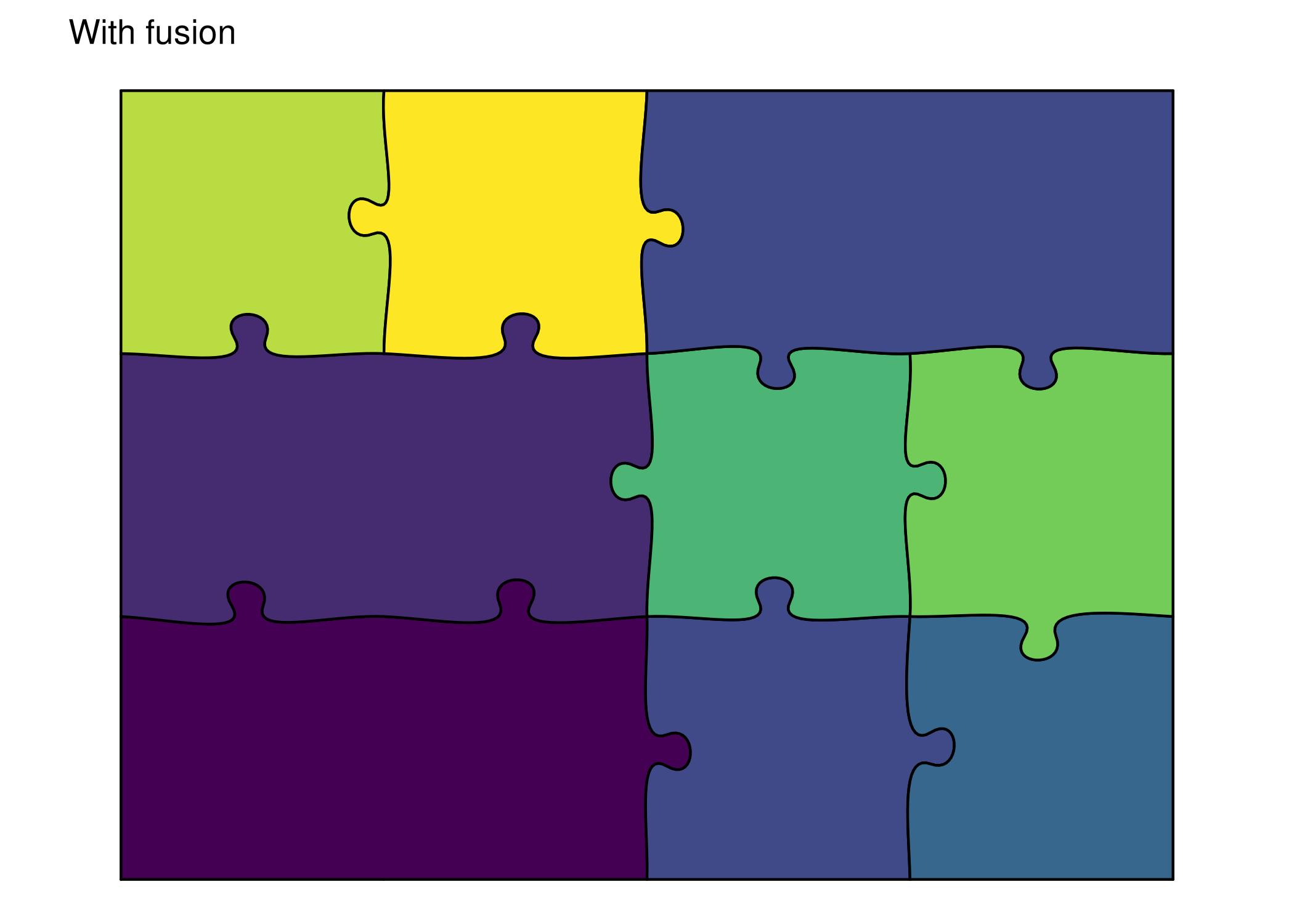

fusion_groups = ‘1-2,5-6,11-12’

Hexagonal Keywords

# Center merged with ring 1
print(ggplot() +
  geom_puzzle_hex(
    aes(fill = after_stat(group_id)),
    rings = 3, diameter = 200, seed = 42,
    fusion_groups = "center-ring1"
  ) +
  scale_fill_viridis_c(option = "plasma", guide = "none") +
  coord_fixed() +
  theme_puzzle() +
  labs(title = "center-ring1"))

# Ring 2 merged
print(ggplot() +
  geom_puzzle_hex(
    aes(fill = after_stat(group_id)),
    rings = 3, diameter = 200, seed = 42,
    fusion_groups = "ring2"
  ) +
  scale_fill_viridis_c(option = "plasma", guide = "none") +
  coord_fixed() +
  theme_puzzle() +
  labs(title = "ring2"))

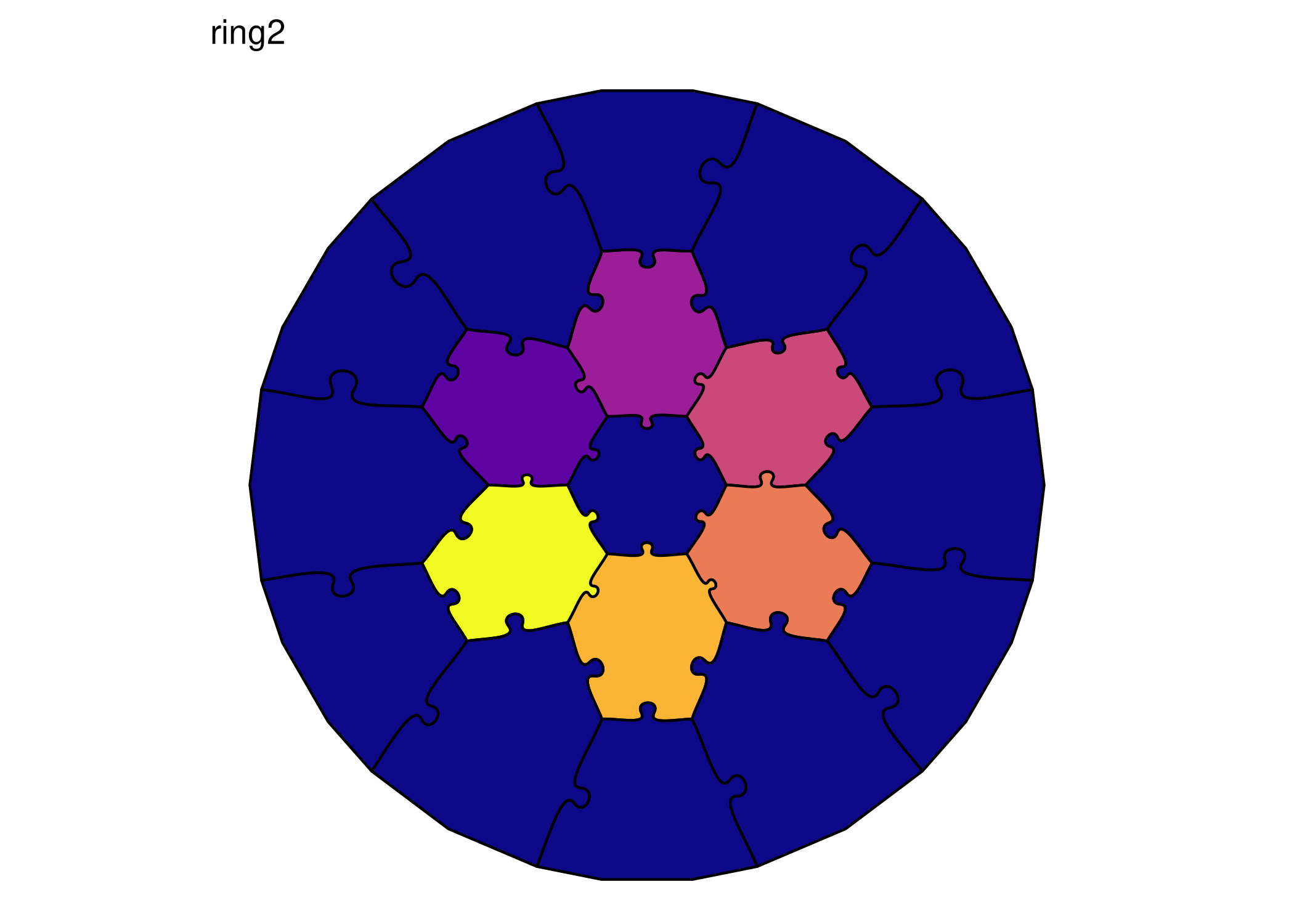

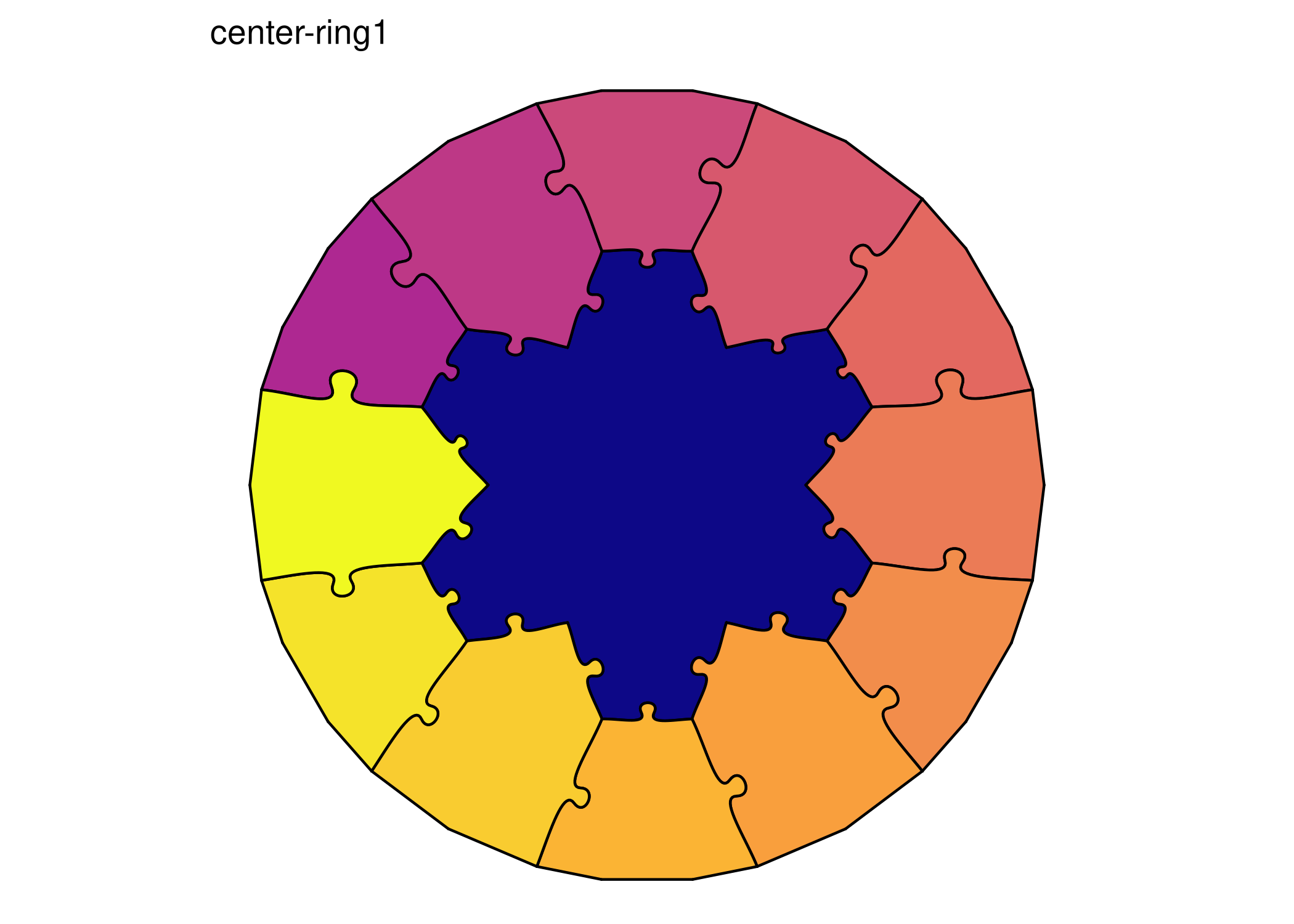

fusion_groups = ‘center-ring1’

fusion_groups = ‘ring2’

Keywords Reference

Hexagonal/Concentric Keywords

Keyword Description Requires
center Center piece (piece 1) puzzle_result
ring1 All pieces in ring 1 puzzle_result
ring2 All pieces in ring 2 puzzle_result
ringN All pieces in ring N puzzle_result
boundary All outer boundary pieces puzzle_result

Rectangular Keywords

Keyword Description Requires
R1 Row 1 (top) puzzle_result
R2 Row 2 puzzle_result
RN Row N puzzle_result
C1 Column 1 (left) puzzle_result
C2 Column 2 puzzle_result
CN Column N puzzle_result
boundary All edge pieces puzzle_result

Programmatic API

parse_piles()

Parse a PILES string into a list of piece ID vectors:

# Basic parsing
result <- parse_piles("1-2-3,4-5")
print(result)
#> [[1]]
#> [1] 1 2 3
#>
#> [[2]]
#> [1] 4 5

parse_fusion()

Auto-detect format and parse (requires puzzle result for keywords):

# With puzzle result for keyword expansion
puzzle <- generate_puzzle(
  type = "hexagonal",
  grid = c(3),
  size = c(200),
  seed = 42
)

groups <- parse_fusion("center-ring1", puzzle)

to_piles()

Convert a list of groups back to PILES notation:

groups <- list(c(1, 2, 3), c(4, 5))
notation <- to_piles(groups)
print(notation)
#> [1] "1:3,4-5"

validate_piles_syntax()

Check if a PILES string is syntactically valid:

validate_piles_syntax("1-2-3,4-5")      # TRUE
#> $valid
#> [1] TRUE
#>
#> $message
#> [1] "Valid PILES syntax"
#>
#> $warnings
#> character(0)
validate_piles_syntax("1-2(-3)")        # FALSE (invalid)
#> $valid
#> [1] TRUE
#>
#> $message
#> [1] "Valid PILES syntax"
#>
#> $warnings
#> character(0)

Complex Examples

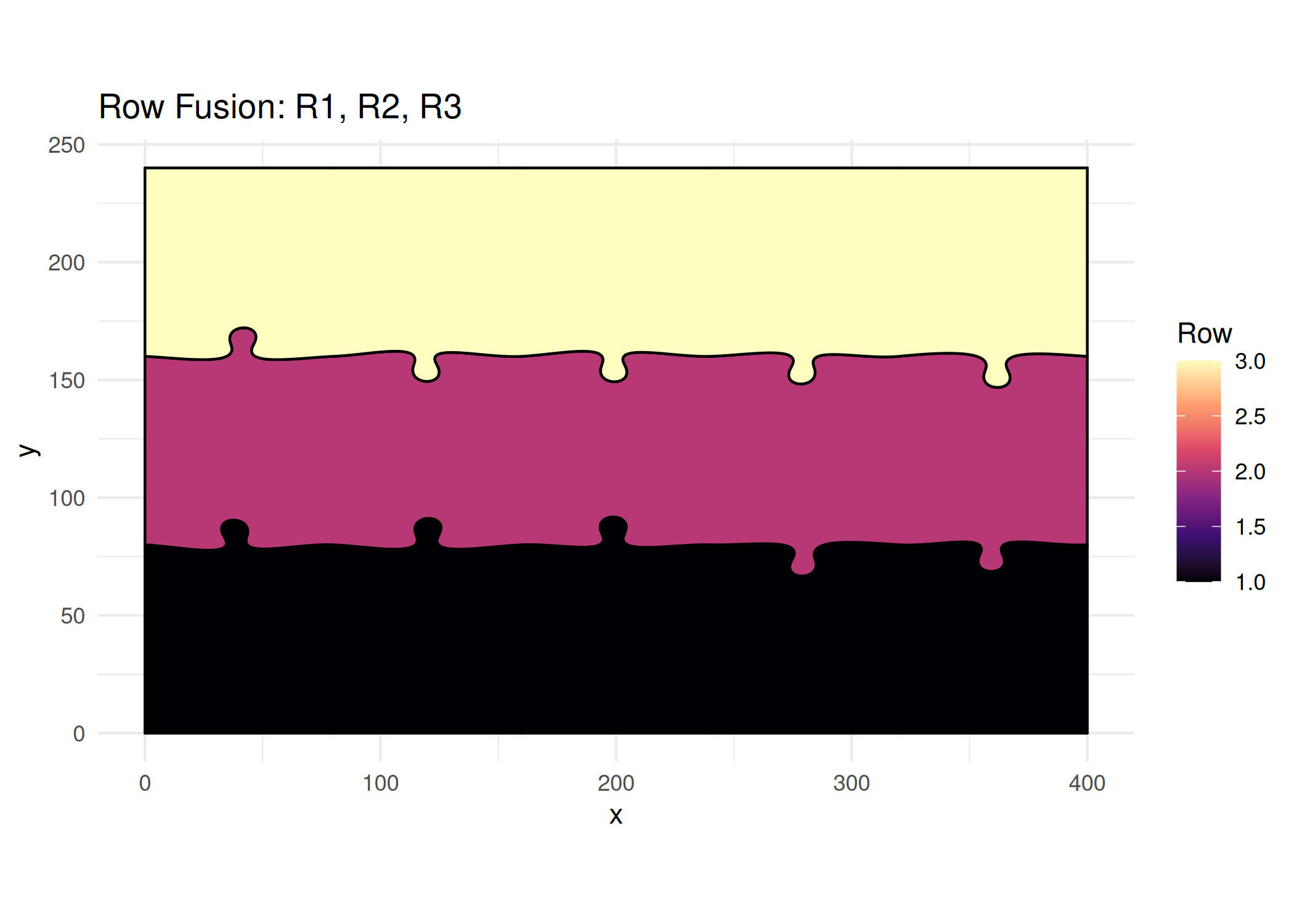

Row Fusion

# Fuse each row
ggplot() +
  geom_puzzle_rect(
    aes(fill = after_stat(group_id)),
    cols = 5, rows = 3,
    width = 400, height = 240,
    seed = 42,
    fusion_groups = "R1,R2,R3"
  ) +
  scale_fill_viridis_c(
    option = "magma",
    name = "Row"
  ) +
  coord_fixed() +
  theme_minimal() +
  labs(title = "Row Fusion: R1, R2, R3")

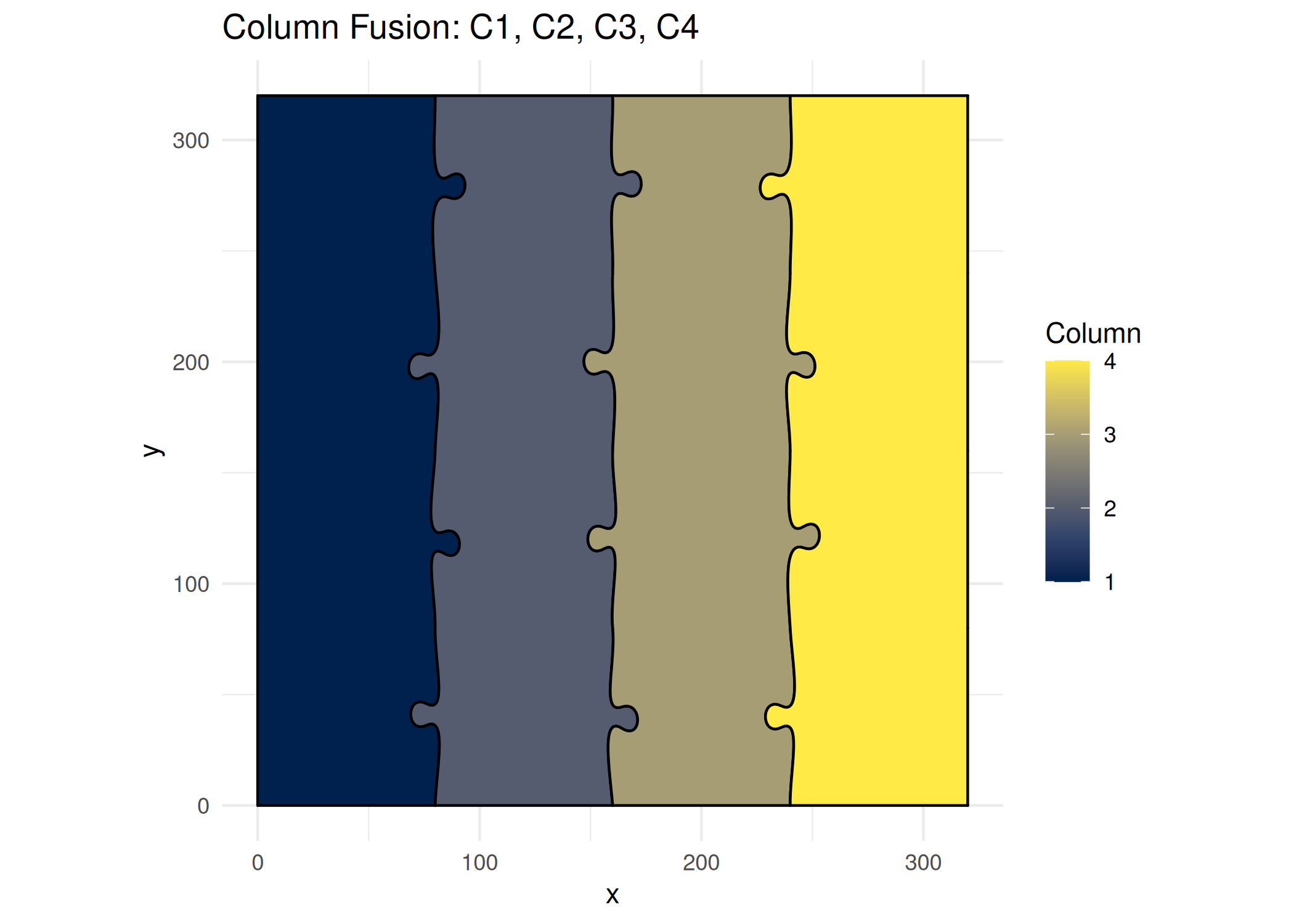

Column Fusion

# Fuse each column
ggplot() +
  geom_puzzle_rect(
    aes(fill = after_stat(group_id)),
    cols = 4, rows = 4,
    width = 320, height = 320,
    seed = 42,
    fusion_groups = "C1,C2,C3,C4"
  ) +
  scale_fill_viridis_c(
    option = "cividis",
    name = "Column"
  ) +
  coord_fixed() +
  theme_minimal() +
  labs(title = "Column Fusion: C1, C2, C3, C4")

Mixed Notation

Combine different notations in one string:

# Numeric IDs + ranges
"1-2,5:8,10-11-12"
#> [1] "1-2,5:8,10-11-12"

# Keywords + IDs
"center-1,ring2"
#> [1] "center-1,ring2"

Validation Rules

  1. Piece IDs must exist: IDs must be valid for the puzzle
  2. No duplicates in group: Each piece can only appear once per group
  3. Adjacent pieces recommended: For visual coherence, fused pieces should be neighbors

Error Handling

# Invalid syntax
tryCatch(
  validate_piles_syntax("1-2(-3)"),
  error = function(e) message("Error: ", e$message)
)
#> $valid
#> [1] TRUE
#>
#> $message
#> [1] "Valid PILES syntax"
#>
#> $warnings
#> character(0)

Best Practices

  1. Use keywords for semantics: ring1 is clearer than 2-3-4-5-6-7
  2. Group logically: Keep related pieces in the same fusion group
  3. Validate first: Use validate_piles_syntax() before generating
  4. Consider adjacency: Non-adjacent fused pieces may look disconnected

PILES vs Other Formats

Format Example Notes
PILES 1-2-3,4-5 Compact, human-readable
List list(c(1,2,3), c(4,5)) Programmatic R format
JSON [[1,2,3],[4,5]] For API interchange

Convert between formats:

# PILES to list
groups <- parse_piles("1-2-3,4-5")
print(groups)
#> [[1]]
#> [1] 1 2 3
#>
#> [[2]]
#> [1] 4 5

# List to PILES
notation <- to_piles(groups)
print(notation)
#> [1] "1:3,4-5"
