ggpuzzle Extension

Native ggplot2 integration for puzzle visualization

Overview

jigsawR provides native ggplot2 geoms for each puzzle type, enabling seamless integration with the ggplot2 ecosystem. Map data to puzzle pieces, combine with other geoms, use faceting, and apply any ggplot2 theme.

Available Geoms

Geom Description
geom_puzzle_rect() Rectangular jigsaw puzzles
geom_puzzle_hex() Hexagonal honeycomb puzzles
geom_puzzle_conc() Concentric ring puzzles
geom_puzzle_voronoi() Voronoi tessellation puzzles
geom_puzzle_random() Random shape puzzles
geom_puzzle_snic() SNIC superpixel puzzles

Basic Usage

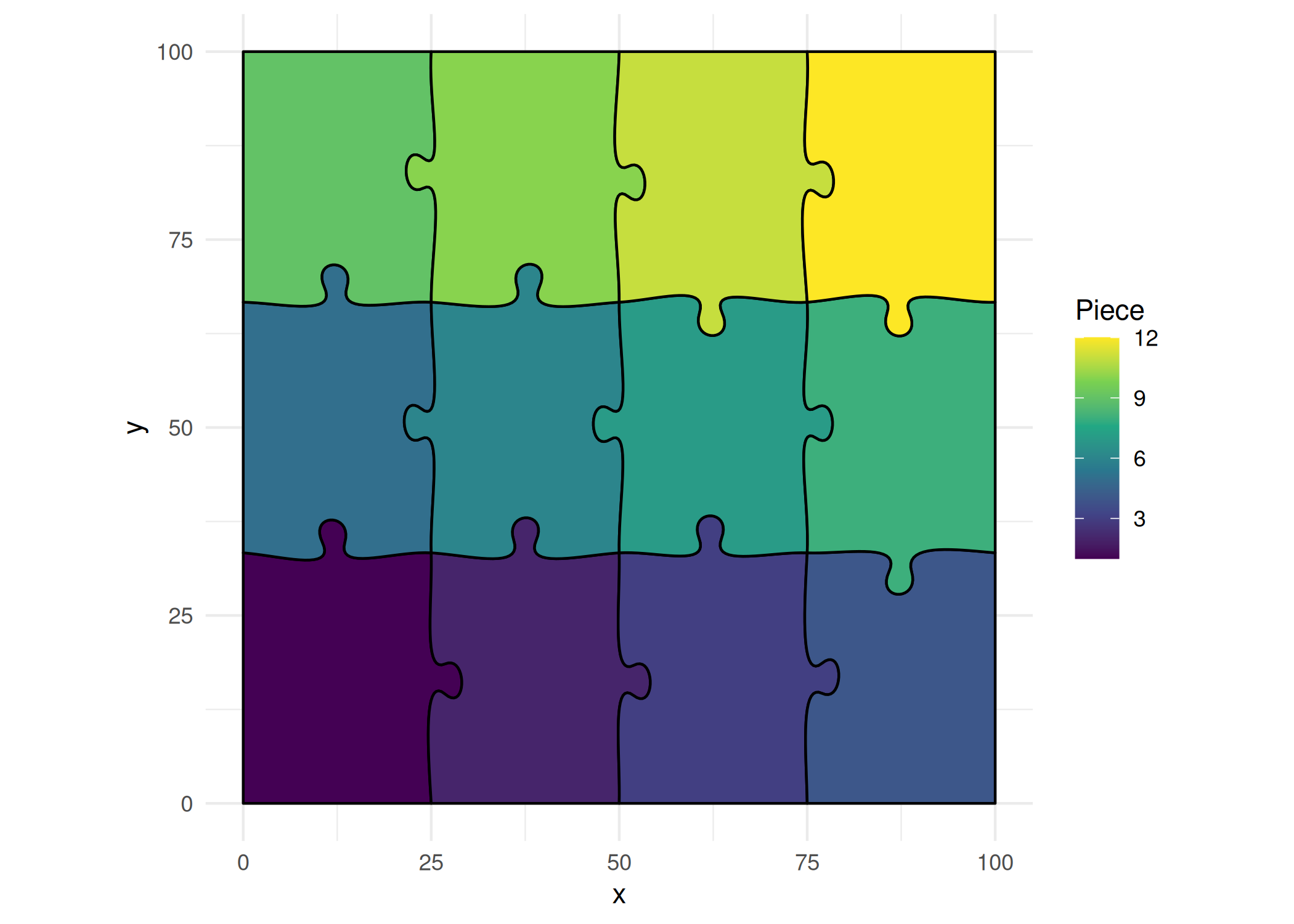

geom_puzzle_rect()

ggplot() +
  geom_puzzle_rect(
    aes(fill = after_stat(piece_id)),
    cols = 4, rows = 3,
    seed = 42
  ) +
  scale_fill_viridis_c(name = "Piece") +
  coord_fixed() +
  theme_minimal()

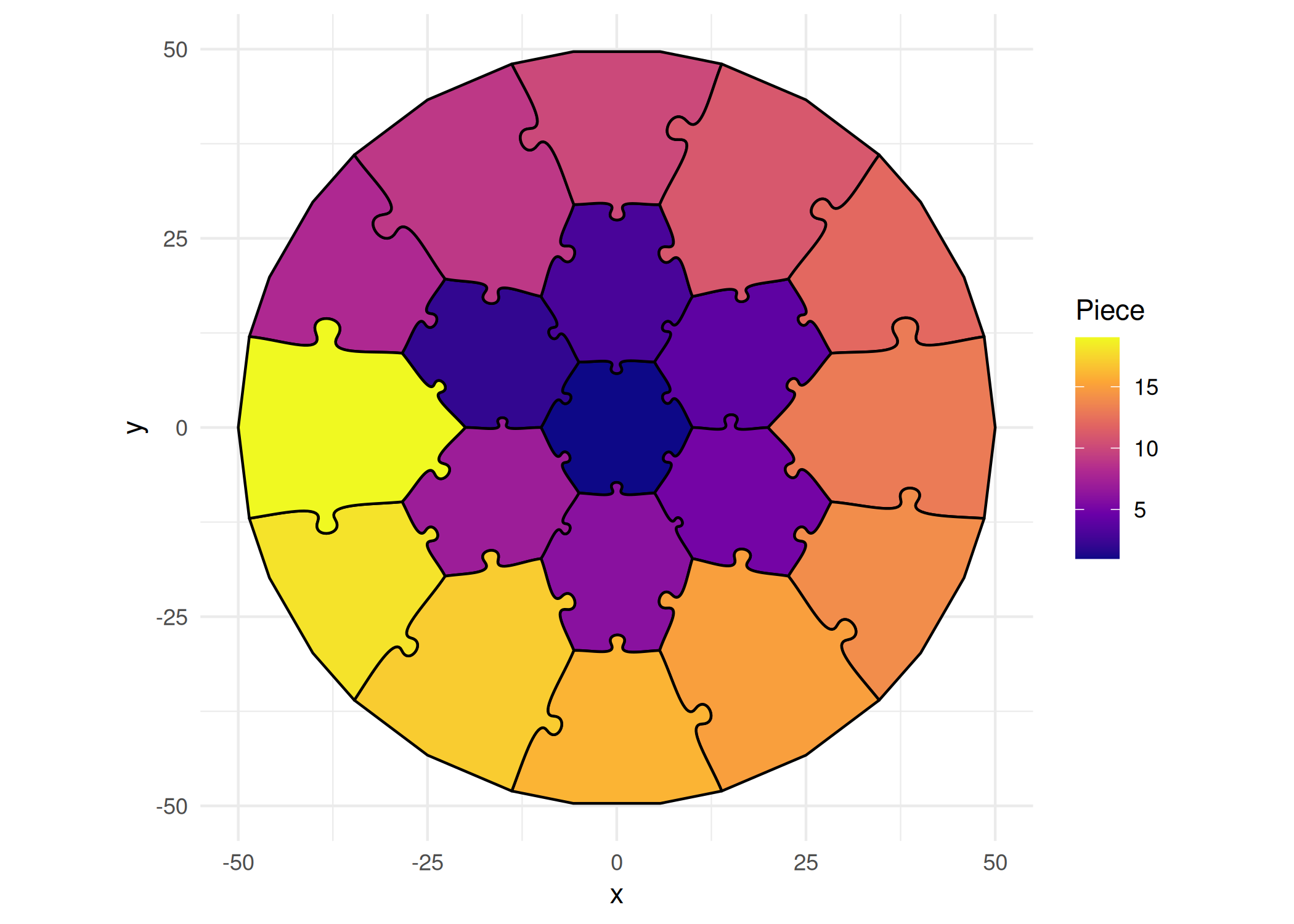

geom_puzzle_hex()

ggplot() +
  geom_puzzle_hex(
    aes(fill = after_stat(piece_id)),
    rings = 3,
    seed = 42
  ) +
  scale_fill_viridis_c(option = "plasma", name = "Piece") +
  coord_fixed() +
  theme_minimal()

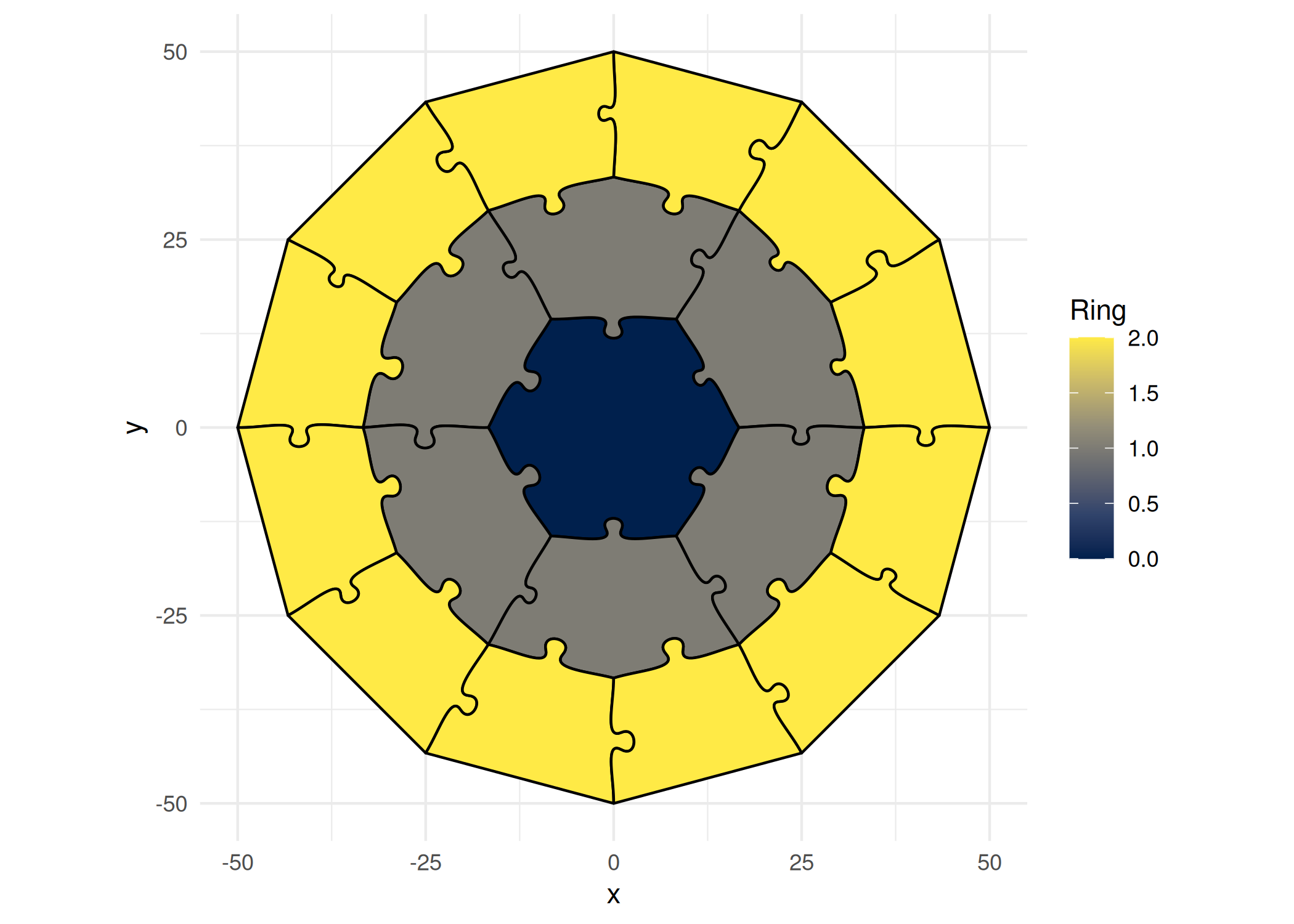

geom_puzzle_conc()

ggplot() +
  geom_puzzle_conc(
    aes(fill = after_stat(ring)),
    rings = 3,
    center_shape = "hexagon",
    seed = 42
  ) +
  scale_fill_viridis_c(option = "cividis", name = "Ring") +
  coord_fixed() +
  theme_minimal()

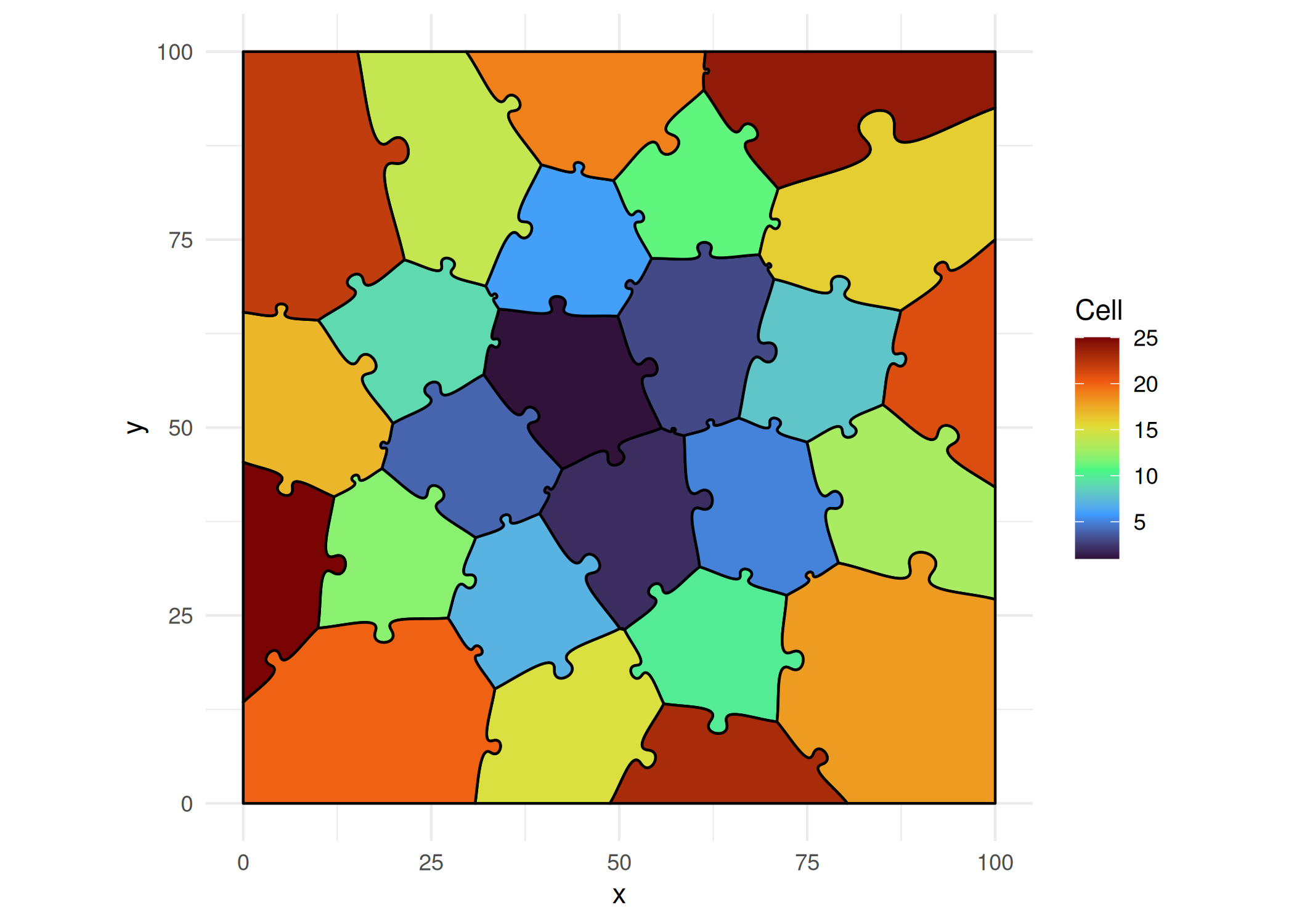

geom_puzzle_voronoi()

ggplot() +
  geom_puzzle_voronoi(
    aes(fill = after_stat(piece_id)),
    n_cells = 25,
    seed = 42
  ) +
  scale_fill_viridis_c(option = "turbo", name = "Cell") +
  coord_fixed() +
  theme_minimal()

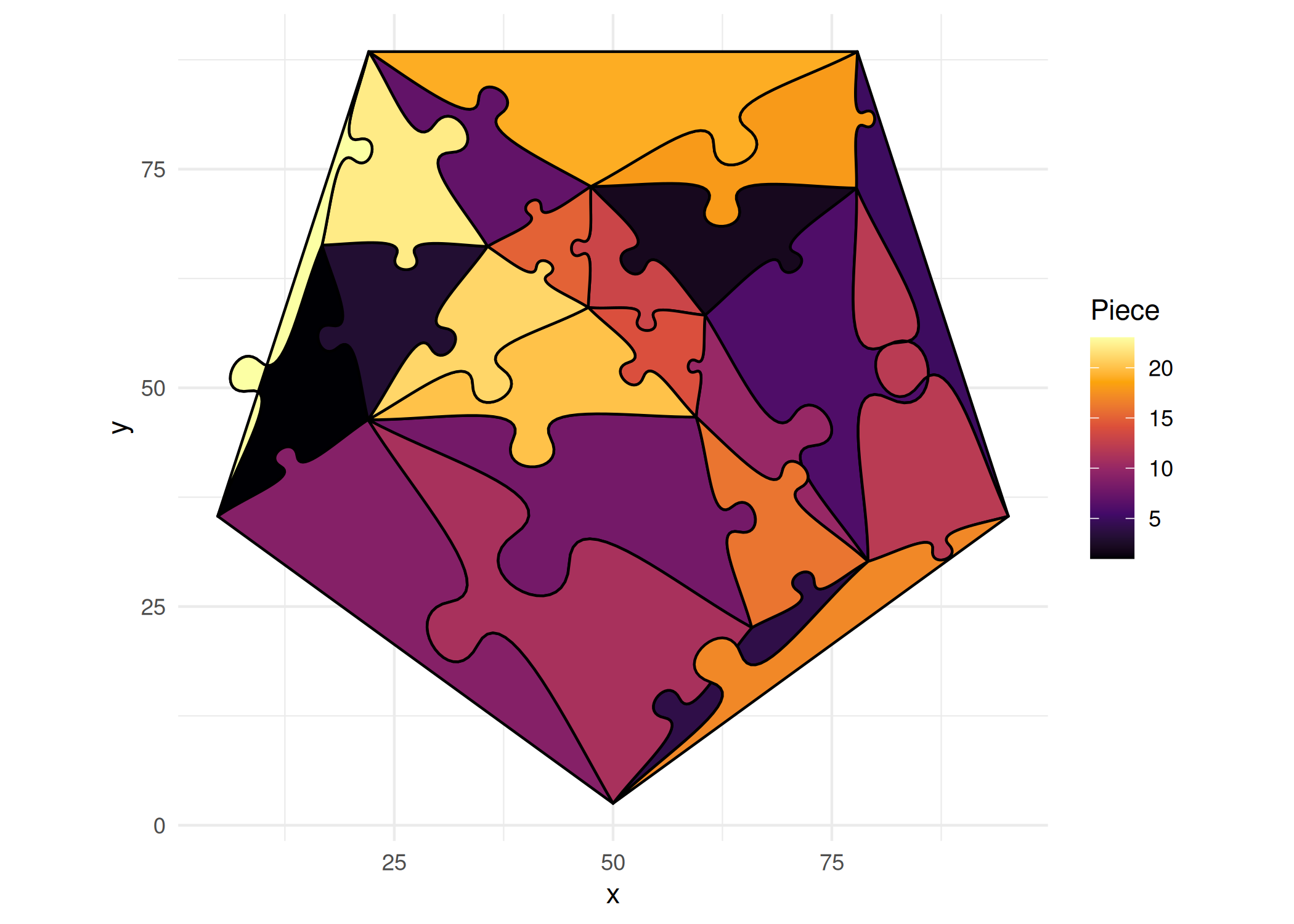

geom_puzzle_random()

ggplot() +
  geom_puzzle_random(
    aes(fill = after_stat(piece_id)),
    n_interior = 10,
    n_corner = 5,
    seed = 42
  ) +
  scale_fill_viridis_c(option = "inferno", name = "Piece") +
  coord_fixed() +
  theme_minimal()

geom_puzzle_snic()

ggplot() +
  geom_puzzle_snic(
    aes(fill = after_stat(piece_id)),
    n_cells = 25,
    seed = 42
  ) +
  scale_fill_viridis_c(option = "turbo", name = "Cell") +
  coord_fixed() +
  theme_minimal()
Note

SNIC puzzles require the snic package. Image-based usage additionally requires magick.

Aesthetic Mappings

All geoms compute these variables that can be mapped to aesthetics:

Variable Description Available In
piece_id Unique piece identifier All types
group_id Fusion group identifier All types
ring Ring number (0 = center) hex, conc
is_center TRUE for center piece hex, conc
is_boundary TRUE for boundary pieces All types
row Row number rectangular
col Column number rectangular

Example: Mapping Data

# Create some data
data <- data.frame(
  region = 1:7,
  population = c(1200, 800, 1500, 600, 2000, 900, 1100)
)

# Map to puzzle pieces
ggplot(data) +
  geom_puzzle_hex(
    aes(fill = population),
    rings = 2,
    seed = 42
  ) +
  scale_fill_viridis_c(
    option = "plasma",
    name = "Population",
    labels = scales::comma
  ) +
  coord_fixed() +
  theme_puzzle() +
  labs(title = "Population by Region")

Parameters Reference

Common Parameters

Parameter Type Default Description
seed integer random Random seed for reproducibility
offset numeric 0 Piece separation distance
layout string “grid” Layout algorithm: "grid" or "repel"
repel_margin numeric 2 Minimum margin between pieces when layout = "repel"
repel_max_iter integer 100 Maximum iterations for repel layout
bezier_resolution integer 20 Points per bezier curve segment
fill_direction string “forward” Spatial color order: "forward" or "reverse"

geom_puzzle_rect()

Parameter Type Default Description
cols integer required Number of columns
rows integer required Number of rows
width numeric required Total width in mm
height numeric required Total height in mm
tabsize numeric 6 Tab size (% of edge length)
jitter numeric 2 Tab randomness (% of edge length)

geom_puzzle_hex()

Parameter Type Default Description
rings integer required Number of rings
diameter numeric required Outer diameter in mm
do_warp logical TRUE Apply circular warping
do_trunc logical TRUE Truncate to boundary
do_circular_border logical FALSE Use perfect circular arc borders
tabsize numeric 6 Tab size (% of edge length)
jitter numeric 2 Tab randomness (% of edge length)

geom_puzzle_conc()

Parameter Type Default Description
rings integer required Number of rings
diameter numeric required Outer diameter in mm
center_shape string “hexagon” Center: “hexagon” or “circle”
do_circular_border logical FALSE Use perfect circular arc borders
boundary_facing string “inward” Boundary tab facing direction

geom_puzzle_voronoi()

Parameter Type Default Description
n_cells integer required Number of cells
width numeric required Canvas width in mm
height numeric required Canvas height in mm
relaxation integer 0 Lloyd relaxation iterations
point_distribution string “fermat” Seed point distribution method

geom_puzzle_random()

Parameter Type Default Description
n_interior integer 12 Number of interior points (influences piece count)
width numeric 100 Canvas width in mm
height numeric 100 Canvas height in mm
n_corner integer 4 Corners for base polygon (3-8)

geom_puzzle_snic()

Parameter Type Default Description
n_cells integer 50 Number of superpixel cells
width numeric 100 Canvas width in mm
height numeric 100 Canvas height in mm
compactness numeric 0.5 Superpixel compactness (0.0-2.0)
seed_type string “hexagonal” Seed grid: "hexagonal", "rectangular", "diamond", "random"
image_path string NULL Path to image file (optional)

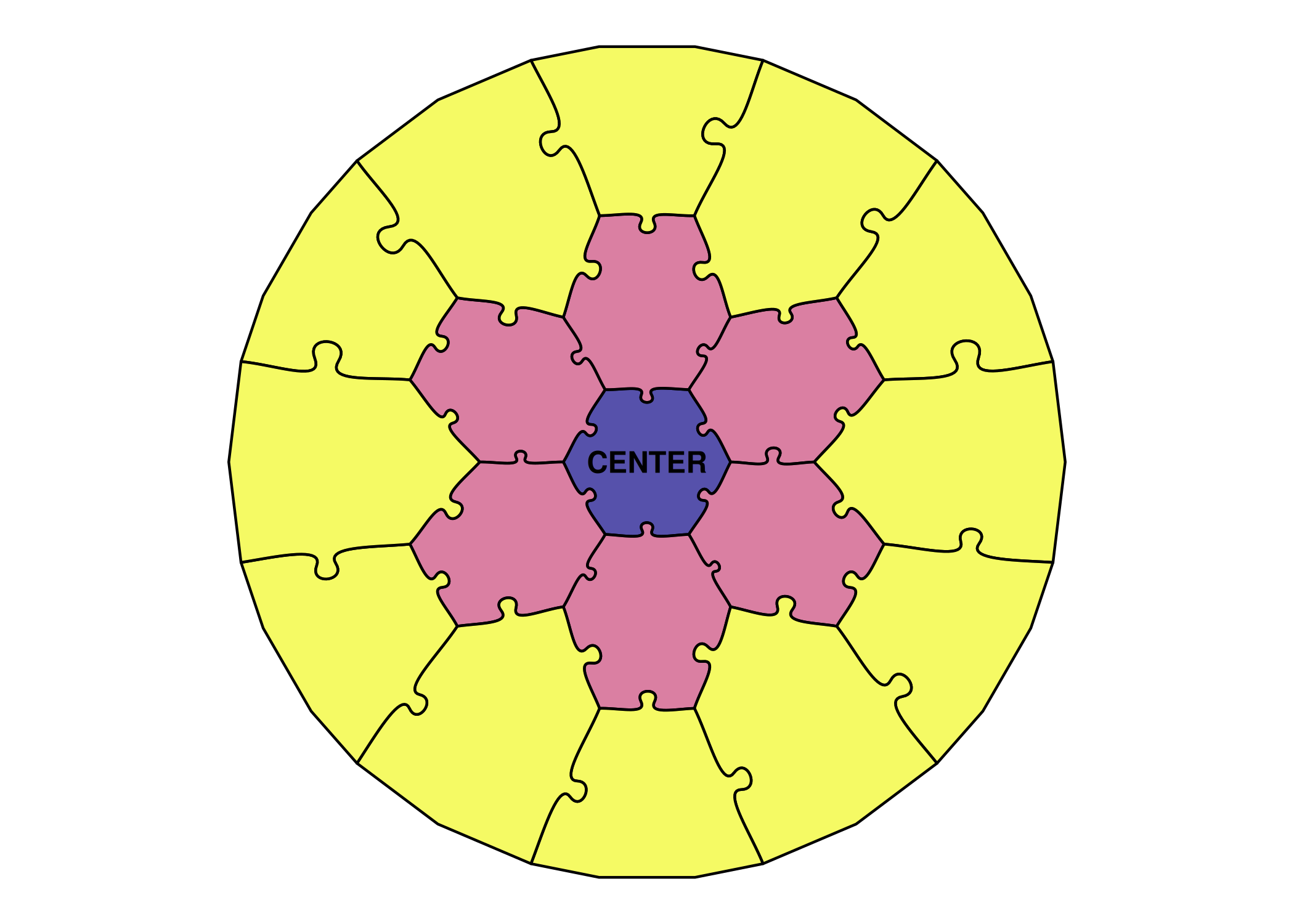

Combining with Other Geoms

ggpuzzle geoms work seamlessly with other ggplot2 elements:

ggplot() +
  # Puzzle as background
  geom_puzzle_hex(
    aes(fill = after_stat(ring)),
    rings = 3,
    diameter = 200,
    seed = 42,
    alpha = 0.7
  ) +
  # Add annotations
  annotate(
    "text",
    x = 0, y = 0,
    label = "CENTER",
    size = 4,
    fontface = "bold"
  ) +
  scale_fill_viridis_c(option = "plasma", guide = "none") +
  coord_fixed() +
  theme_puzzle()

Faceting

Use faceting to show variations:

# Create data for faceting
variations <- data.frame(
  rings = c(2, 3, 4),
  label = c("2 Rings", "3 Rings", "4 Rings")
)

ggplot(variations) +
  geom_puzzle_hex(
    aes(fill = after_stat(piece_id)),
    rings = 3,  # Will be overridden
    diameter = 150,
    seed = 42
  ) +
  facet_wrap(~label) +
  scale_fill_viridis_c(guide = "none") +
  coord_fixed() +
  theme_puzzle()

Theming

Apply any ggplot2 theme:

# Minimal theme
print(ggplot() +
  geom_puzzle_rect(
    aes(fill = after_stat(piece_id)),
    cols = 3, rows = 2,
    width = 180, height = 120,
    seed = 42
  ) +
  scale_fill_viridis_c(guide = "none") +
  coord_fixed() +
  theme_minimal() +
  labs(title = "Minimal"))

# Dark theme
print(ggplot() +
  geom_puzzle_rect(
    aes(fill = after_stat(piece_id)),
    cols = 3, rows = 2,
    width = 180, height = 120,
    seed = 42
  ) +
  scale_fill_viridis_c(guide = "none") +
  coord_fixed() +
  theme_dark() +
  labs(title = "Dark"))

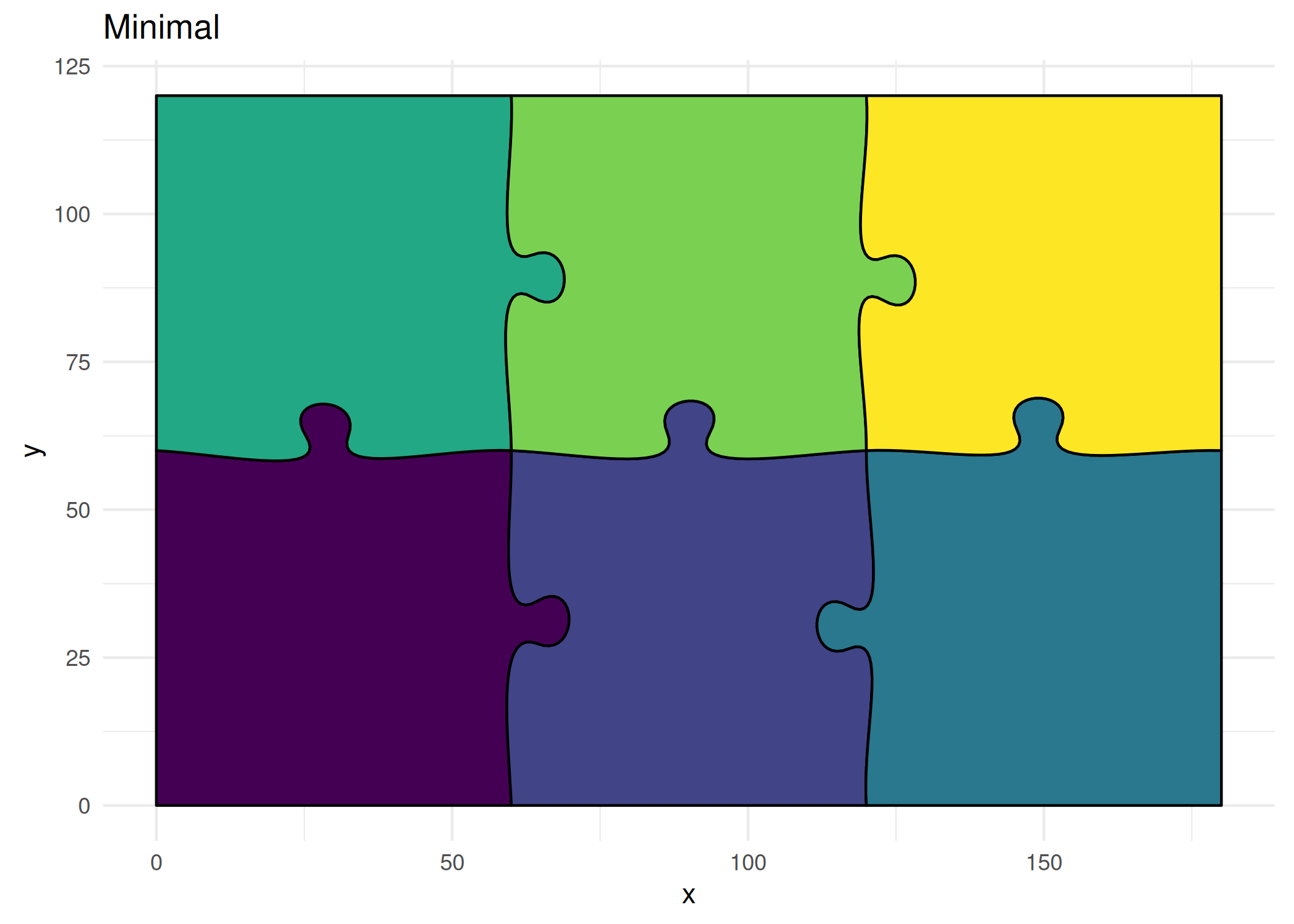

theme_minimal()

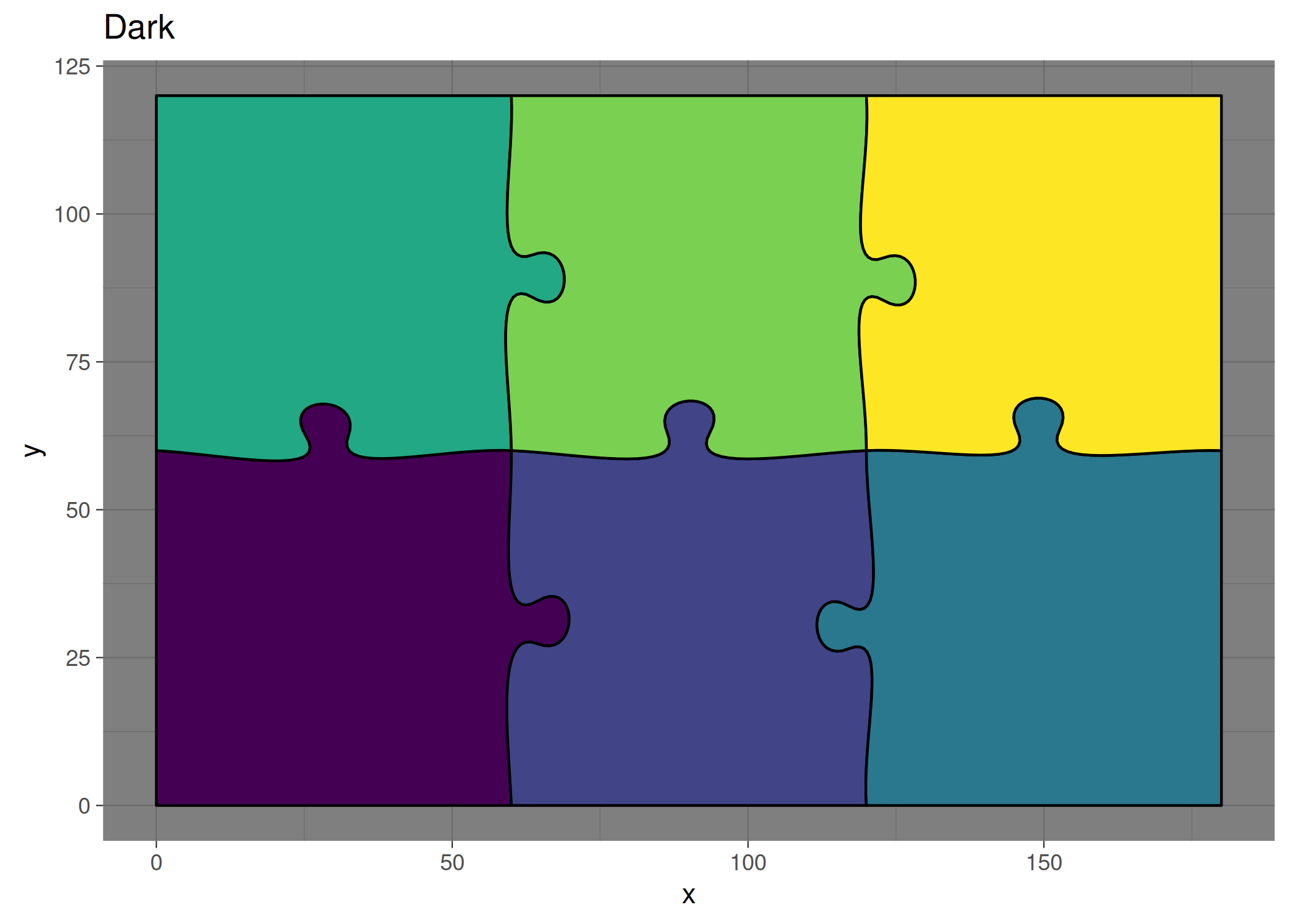

theme_dark()

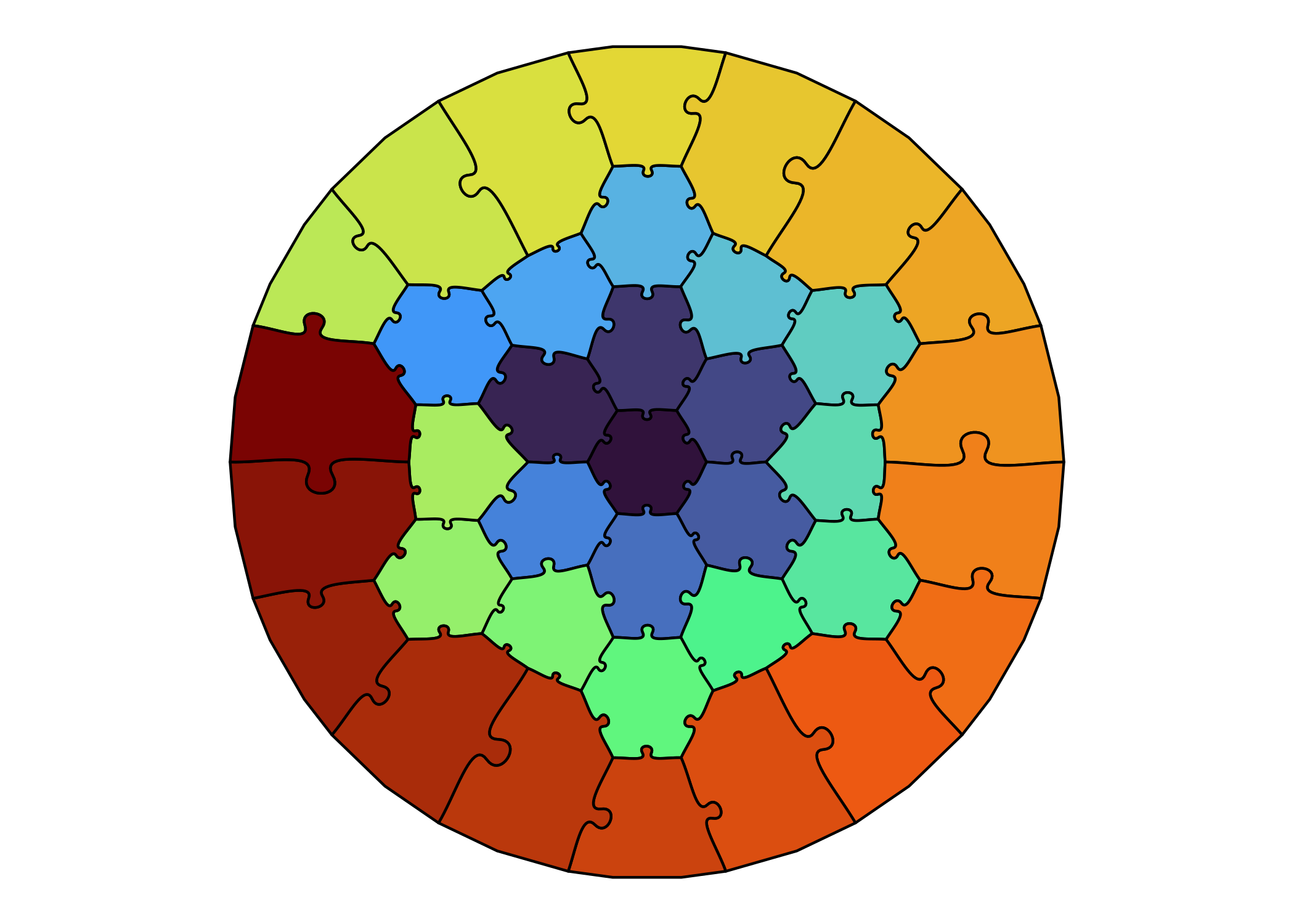

Saving Plots

# Create plot
p <- ggplot() +
  geom_puzzle_hex(
    aes(fill = after_stat(piece_id)),
    rings = 4,
    diameter = 300,
    seed = 42
  ) +
  scale_fill_viridis_c(option = "turbo", guide = "none") +
  coord_fixed() +
  theme_puzzle()
print(p)


# ggsave("puzzle.png", p, width = 8, height = 8, dpi = 300)
# ggsave("puzzle.svg", p, width = 8, height = 8)
# ggsave("puzzle.pdf", p, width = 8, height = 8)
