putior: Register In- and Outputs for Workflow Visualization • putior

Extract beautiful workflow diagrams from your code annotations

putior (PUT + Input + Output + R) is an R package that extracts structured annotations from source code files and creates beautiful Mermaid flowchart diagrams. Perfect for documenting data pipelines, workflows, and understanding complex codebases.

🌟 Key Features

Simple annotations - Add structured comments to your existing code
Beautiful diagrams - Generate professional Mermaid flowcharts
File flow tracking - Automatically connects scripts based on input/output files
Multiple themes - 5 built-in themes including GitHub-optimized
Cross-language support - Works with R, Python, SQL, shell scripts, and Julia
Flexible output - Console, file, or clipboard export
Customizable styling - Control colors, direction, and node shapes

📦 Installation

# Install from GitHub (no GitHub credentials required)
remotes::install_github("pjt222/putior")

# Or with renv
renv::install("pjt222/putior")

# Or with pak (faster)
pak::pkg_install("pjt222/putior")

🚀 Quick Start

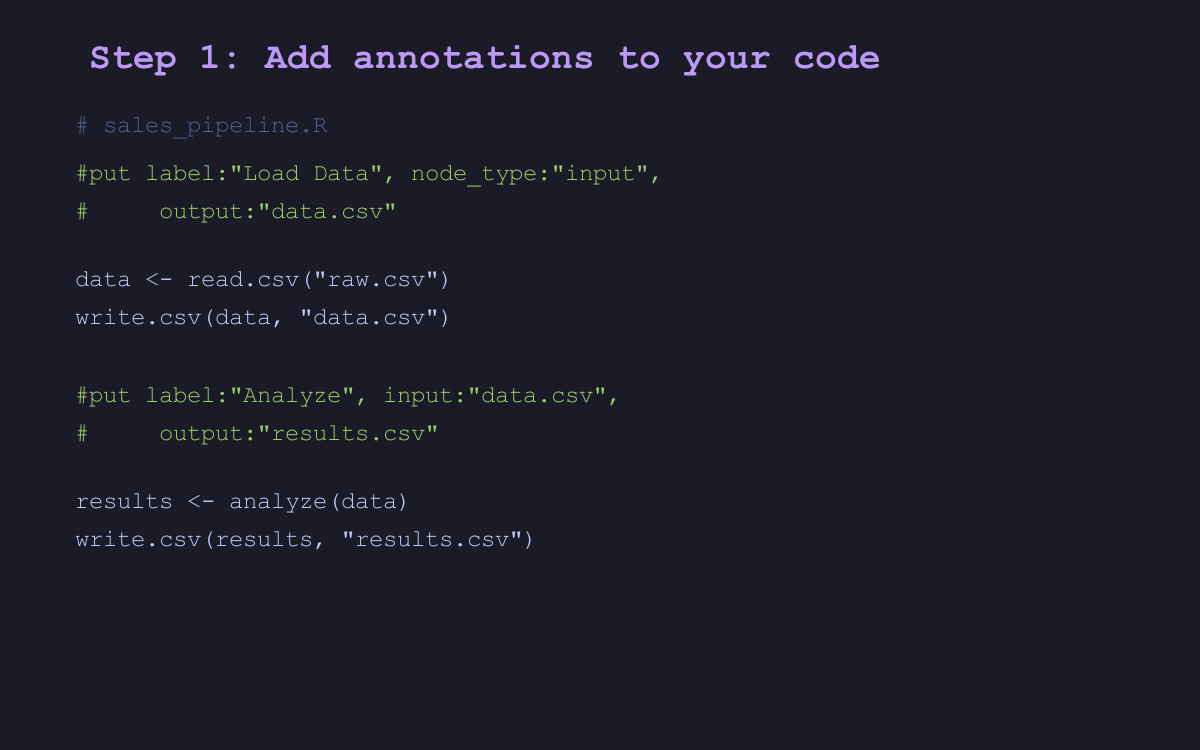

Step 1: Annotate Your Code

Add structured annotations to your R or Python scripts using #put comments:

01_fetch_data.R

#put label:"Fetch Sales Data", node_type:"input", output:"sales_data.csv"

# Your actual code
library(readr)
sales_data <- fetch_sales_from_api()
write_csv(sales_data, "sales_data.csv")

02_clean_data.py

#put label:"Clean and Process", node_type:"process", input:"sales_data.csv", output:"clean_sales.csv"

import pandas as pd
df = pd.read_csv("sales_data.csv")
# ... data cleaning code ...
df.to_csv("clean_sales.csv")

Step 2: Extract and Visualize

library(putior)

# Extract workflow from your scripts
workflow <- put("./scripts/")

# Generate diagram
put_diagram(workflow)

Result:

flowchart TD
    fetch_sales([Fetch Sales Data])
    clean_data[Clean and Process]

    %% Connections
    fetch_sales --> clean_data

    %% Styling
    classDef inputStyle fill:#dbeafe,stroke:#2563eb,stroke-width:2px,color:#1e40af
    class fetch_sales inputStyle
    classDef processStyle fill:#ede9fe,stroke:#7c3aed,stroke-width:2px,color:#5b21b6
    class clean_data processStyle

📈 Common Data Science Pattern

Modular Workflow with source()

The most common data science pattern: modularize functions into separate scripts and orchestrate them in a main workflow:

utils.R - Utility functions

#put label:"Data Utilities", node_type:"input"

load_and_clean <- function(file) {
  data <- read.csv(file)
  data[complete.cases(data), ]
}

validate_data <- function(data) {
  stopifnot(nrow(data) > 0)
  return(data)
}

analysis.R - Analysis functions

#put label:"Statistical Analysis", input:"utils.R"

perform_analysis <- function(data) {
  # Uses utility functions from utils.R
  cleaned <- validate_data(data)
  summary(cleaned)
}

main.R - Workflow orchestrator

#put label:"Main Analysis Pipeline", input:"utils.R,analysis.R", output:"results.csv"

source("utils.R")     # Load utility functions
source("analysis.R")  # Load analysis functions

# Execute the pipeline
data <- load_and_clean("raw_data.csv")
results <- perform_analysis(data)
write.csv(results, "results.csv")

Generated Workflow (Simple):

flowchart TD
    utils([Data Utilities])
    analysis[Statistical Analysis]
    main[Main Analysis Pipeline]

    %% Connections
    utils --> analysis
    utils --> main
    analysis --> main

    %% Styling
    classDef inputStyle fill:#dbeafe,stroke:#2563eb,stroke-width:2px,color:#1e40af
    class utils inputStyle
    classDef processStyle fill:#ede9fe,stroke:#7c3aed,stroke-width:2px,color:#5b21b6
    class analysis processStyle
    class main processStyle

Generated Workflow (With Data Artifacts):

# Show complete data flow including all files
put_diagram(workflow, show_artifacts = TRUE)

flowchart TD
    utils([Data Utilities])
    analysis[Statistical Analysis]
    main[Main Analysis Pipeline]
    artifact_results_csv[(results.csv)]

    %% Connections
    utils --> analysis
    utils --> main
    analysis --> main
    main --> artifact_results_csv

    %% Styling
    classDef inputStyle fill:#dbeafe,stroke:#2563eb,stroke-width:2px,color:#1e40af
    class utils inputStyle
    classDef processStyle fill:#ede9fe,stroke:#7c3aed,stroke-width:2px,color:#5b21b6
    class analysis processStyle
    class main processStyle
    classDef artifactStyle fill:#f3f4f6,stroke:#6b7280,stroke-width:1px,color:#374151
    class artifact_results_csv artifactStyle

This pattern clearly shows: - Function modules (utils.R, analysis.R) are sourced into the main script - Dependencies between modules (analysis depends on utils)
- Complete data flow with artifacts showing terminal outputs like results.csv - Two visualization modes: simple (script connections only) vs. complete (with data artifacts)

📊 Visualization Examples

Basic Workflow

# Simple three-step process
workflow <- put("./data_pipeline/")
put_diagram(workflow)

Advanced Data Science Pipeline

Here’s how putior handles a complete data science workflow:

File Structure:

data_pipeline/
├── 01_fetch_sales.R      # Fetch sales data
├── 02_fetch_customers.R  # Fetch customer data
├── 03_clean_sales.py     # Clean sales data
├── 04_merge_data.R       # Merge datasets
├── 05_analyze.py         # Statistical analysis
└── 06_report.R           # Generate final report

Generated Workflow:

flowchart TD
    fetch_sales([Fetch Sales Data])
    fetch_customers([Fetch Customer Data])
    clean_sales[Clean Sales Data]
    merge_data[Merge Datasets]
    analyze[Statistical Analysis]
    report[[Generate Final Report]]

    %% Connections
    fetch_sales --> clean_sales
    fetch_customers --> merge_data
    clean_sales --> merge_data
    merge_data --> analyze
    analyze --> report

    %% Styling
    classDef inputStyle fill:#dbeafe,stroke:#2563eb,stroke-width:2px,color:#1e40af
    class fetch_sales inputStyle
    class fetch_customers inputStyle
    classDef processStyle fill:#ede9fe,stroke:#7c3aed,stroke-width:2px,color:#5b21b6
    class clean_sales processStyle
    class merge_data processStyle
    class analyze processStyle
    classDef outputStyle fill:#dcfce7,stroke:#16a34a,stroke-width:2px,color:#15803d
    class report outputStyle

📋 Using the Diagrams

Embedding in Documentation

The generated Mermaid code works perfectly in:

GitHub README files (native Mermaid support)
GitLab documentation
Notion pages
Obsidian notes
Jupyter notebooks (with extensions)
Sphinx documentation (with plugins)
Any Markdown renderer with Mermaid support

# Save to markdown file
put_diagram(workflow, output = "file", file = "workflow.md")

# Copy to clipboard for pasting
put_diagram(workflow, output = "clipboard")

# Include title for documentation
put_diagram(workflow, output = "file", file = "docs/pipeline.md",
           title = "Data Processing Pipeline")

🔧 Visualization Modes

putior offers two visualization modes to suit different needs:

Workflow Boundaries Demo

First, let’s see how workflow boundaries enhance pipeline visualization:

Pipeline with Boundaries (Default):

# Complete ETL pipeline with clear start/end boundaries
put_diagram(workflow, show_workflow_boundaries = TRUE)

flowchart TD
    pipeline_start([Data Pipeline Start])
    extract_data[Extract Raw Data]
    transform_data[Transform Data]
    pipeline_end([Pipeline Complete])

    %% Connections
    pipeline_start --> extract_data
    extract_data --> transform_data
    transform_data --> pipeline_end

    %% Styling
    classDef processStyle fill:#ede9fe,stroke:#7c3aed,stroke-width:2px,color:#5b21b6
    class extract_data processStyle
    class transform_data processStyle
    classDef startStyle fill:#fef3c7,stroke:#d97706,stroke-width:3px,color:#92400e
    class pipeline_start startStyle
    classDef endStyle fill:#dcfce7,stroke:#16a34a,stroke-width:3px,color:#15803d
    class pipeline_end endStyle

Same Pipeline without Boundaries:

# Clean diagram without workflow control styling
put_diagram(workflow, show_workflow_boundaries = FALSE)

flowchart TD
    pipeline_start([Data Pipeline Start])
    extract_data[Extract Raw Data]
    transform_data[Transform Data]
    pipeline_end([Pipeline Complete])

    %% Connections
    pipeline_start --> extract_data
    extract_data --> transform_data
    transform_data --> pipeline_end

    %% Styling
    classDef processStyle fill:#ede9fe,stroke:#7c3aed,stroke-width:2px,color:#5b21b6
    class extract_data processStyle
    class transform_data processStyle

Simple Mode (Default)

Shows only script-to-script connections - perfect for understanding code dependencies:

put_diagram(workflow)  # Default: simple mode

Use when: - Documenting code architecture - Showing function dependencies - Clean, simple workflow diagrams

Artifact Mode (Complete Data Flow)

Shows all data files as nodes - provides complete picture of data flow including terminal outputs:

put_diagram(workflow, show_artifacts = TRUE)

Use when: - Documenting data pipelines - Tracking data lineage - Showing complete input/output flow - Understanding data dependencies

Comparison Example

Simple Mode:

flowchart TD
    load[Load Data] --> process[Process Data]
    process --> analyze[Analyze]

Artifact Mode:

flowchart TD
    load[Load Data]
    raw_data[(raw_data.csv)]
    process[Process Data]
    clean_data[(clean_data.csv)]
    analyze[Analyze]
    results[(results.json)]

    load --> raw_data
    raw_data --> process
    process --> clean_data
    clean_data --> analyze
    analyze --> results

Key Differences

Mode	Shows	Best For
Simple	Script connections only	Code architecture, dependencies
Artifact	Scripts + data files	Data pipelines, complete data flow

File Labeling

Add file names to connections for extra clarity:

# Show file names on arrows
put_diagram(workflow, show_artifacts = TRUE, show_files = TRUE)

🎨 Theme System

putior provides 5 carefully designed themes optimized for different environments:

# Get list of available themes
get_diagram_themes()

Theme Overview

Theme	Best For	Description
`light`	Documentation sites, tutorials	Default light theme with bright colors
`dark`	Dark mode apps, terminals	Dark theme with muted colors
`auto`	GitHub README files	GitHub-adaptive theme that works in both modes
`minimal`	Business reports, presentations	Grayscale professional theme
`github`	GitHub README (recommended)	Optimized for maximum GitHub compatibility

Theme Examples

Light Theme

put_diagram(workflow, theme = "light")

flowchart TD
    fetch_data([Fetch API Data])
    clean_data[Clean and Validate]
    generate_report[[Generate Final Report]]

    %% Connections
    fetch_data --> clean_data
    clean_data --> generate_report

    %% Styling
    classDef inputStyle fill:#e1f5fe,stroke:#01579b,stroke-width:2px,color:#000000
    class fetch_data inputStyle
    classDef processStyle fill:#f3e5f5,stroke:#4a148c,stroke-width:2px,color:#000000
    class clean_data processStyle
    classDef outputStyle fill:#e8f5e8,stroke:#1b5e20,stroke-width:2px,color:#000000
    class generate_report outputStyle

Dark Theme

put_diagram(workflow, theme = "dark")

flowchart TD
    fetch_data([Fetch API Data])
    clean_data[Clean and Validate]
    generate_report[[Generate Final Report]]

    %% Connections
    fetch_data --> clean_data
    clean_data --> generate_report

    %% Styling
    classDef inputStyle fill:#1a237e,stroke:#3f51b5,stroke-width:2px,color:#ffffff
    class fetch_data inputStyle
    classDef processStyle fill:#4a148c,stroke:#9c27b0,stroke-width:2px,color:#ffffff
    class clean_data processStyle
    classDef outputStyle fill:#1b5e20,stroke:#4caf50,stroke-width:2px,color:#ffffff
    class generate_report outputStyle

Auto Theme (GitHub Adaptive)

put_diagram(workflow, theme = "auto")  # Recommended for GitHub!

flowchart TD
    fetch_data([Fetch API Data])
    clean_data[Clean and Validate]
    generate_report[[Generate Final Report]]

    %% Connections
    fetch_data --> clean_data
    clean_data --> generate_report

    %% Styling
    classDef inputStyle fill:#3b82f6,stroke:#1d4ed8,stroke-width:2px,color:#ffffff
    class fetch_data inputStyle
    classDef processStyle fill:#8b5cf6,stroke:#6d28d9,stroke-width:2px,color:#ffffff
    class clean_data processStyle
    classDef outputStyle fill:#10b981,stroke:#047857,stroke-width:2px,color:#ffffff
    class generate_report outputStyle

GitHub Theme (Maximum Compatibility)

put_diagram(workflow, theme = "github")  # Best for GitHub README

flowchart TD
    fetch_data([Fetch API Data])
    clean_data[Clean and Validate]
    generate_report[[Generate Final Report]]

    %% Connections
    fetch_data --> clean_data
    clean_data --> generate_report

    %% Styling
    classDef inputStyle fill:#dbeafe,stroke:#2563eb,stroke-width:2px,color:#1e40af
    class fetch_data inputStyle
    classDef processStyle fill:#ede9fe,stroke:#7c3aed,stroke-width:2px,color:#5b21b6
    class clean_data processStyle
    classDef outputStyle fill:#dcfce7,stroke:#16a34a,stroke-width:2px,color:#15803d
    class generate_report outputStyle

Minimal Theme

put_diagram(workflow, theme = "minimal")  # Professional documents

flowchart TD
    fetch_data([Fetch API Data])
    clean_data[Clean and Validate]
    generate_report[[Generate Final Report]]

    %% Connections
    fetch_data --> clean_data
    clean_data --> generate_report

    %% Styling
    classDef inputStyle fill:#f8fafc,stroke:#64748b,stroke-width:1px,color:#1e293b
    class fetch_data inputStyle
    classDef processStyle fill:#f1f5f9,stroke:#64748b,stroke-width:1px,color:#1e293b
    class clean_data processStyle
    classDef outputStyle fill:#f8fafc,stroke:#64748b,stroke-width:1px,color:#1e293b
    class generate_report outputStyle

When to Use Each Theme

Theme	Use Case	Environment
`light`	Documentation sites, tutorials	Light backgrounds
`dark`	Dark mode apps, terminals	Dark backgrounds
`auto`	GitHub README files	Adapts automatically
`github`	GitHub README (recommended)	Maximum compatibility
`minimal`	Business reports, presentations	Print-friendly

Pro Tips

For GitHub: Use theme = "github" for maximum compatibility, or theme = "auto" for adaptive colors
For Documentation: Use theme = "light" or theme = "dark" to match your site
For Reports: Use theme = "minimal" for professional, print-friendly diagrams
For Demos: Light theme usually shows colors best in presentations

Theme Usage Examples

# For GitHub README (recommended)
put_diagram(workflow, theme = "github")

# For GitHub README (adaptive)
put_diagram(workflow, theme = "auto")

# For dark documentation sites
put_diagram(workflow, theme = "dark", direction = "LR")

# For professional reports
put_diagram(workflow, theme = "minimal", output = "file", file = "report.md")

# Save all themes for comparison
themes <- c("light", "dark", "auto", "github", "minimal")
for(theme in themes) {
  put_diagram(workflow,
             theme = theme,
             output = "file",
             file = paste0("workflow_", theme, ".md"),
             title = paste("Workflow -", stringr::str_to_title(theme), "Theme"))
}

🔧 Customization Options

Flow Direction

put_diagram(workflow, direction = "TD")  # Top to bottom (default)
put_diagram(workflow, direction = "LR")  # Left to right
put_diagram(workflow, direction = "BT")  # Bottom to top
put_diagram(workflow, direction = "RL")  # Right to left

Node Labels

put_diagram(workflow, node_labels = "name")   # Show node IDs
put_diagram(workflow, node_labels = "label")  # Show descriptions (default)
put_diagram(workflow, node_labels = "both")   # Show name: description

File Connections

# Show file names on arrows
put_diagram(workflow, show_files = TRUE)

# Clean arrows without file names
put_diagram(workflow, show_files = FALSE)

Styling Control

# Include colored styling (default)
put_diagram(workflow, style_nodes = TRUE)

# Plain diagram without colors
put_diagram(workflow, style_nodes = FALSE)

# Control workflow boundary styling
put_diagram(workflow, show_workflow_boundaries = TRUE)   # Special start/end styling (default)
put_diagram(workflow, show_workflow_boundaries = FALSE)  # Regular node styling

Workflow Boundaries

# Enable workflow boundaries (default) - start/end get special styling
put_diagram(workflow, show_workflow_boundaries = TRUE)

# Disable workflow boundaries - start/end render as regular nodes
put_diagram(workflow, show_workflow_boundaries = FALSE)

Output Options

# Console output (default)
put_diagram(workflow)

# Save to markdown file
put_diagram(workflow, output = "file", file = "my_workflow.md")

# Copy to clipboard for pasting
put_diagram(workflow, output = "clipboard")

📝 Annotation Reference

Basic Syntax

All PUT annotations follow this format:

#put property1:"value1", property2:"value2", property3:"value3"

Alternative Formats (All Valid)

#put id:"node_id", label:"Description"              # Standard
# put id:"node_id", label:"Description"             # Space after #
#put| id:"node_id", label:"Description"             # Pipe separator
#put: id:"node_id", label:"Description"             # Colon separator

Annotations

Annotation	Description	Example	Required
`id`	Unique identifier for the node (auto-generated if omitted)	`"fetch_data"`, `"clean_sales"`	Optional*
`label`	Human-readable description	`"Fetch Sales Data"`, `"Clean and Process"`	Recommended

*Note: If id is omitted, a UUID will be automatically generated. If you provide an empty id (e.g., id:""), you’ll get a validation warning.

Optional Annotations

Annotation	Description	Example	Default
`node_type`	Visual shape of the node	`"input"`, `"process"`, `"output"`, `"decision"`, `"start"`, `"end"`	`"process"`
`input`	Input files (comma-separated)	`"raw_data.csv, config.json"`	None
`output`	Output files (comma-separated)	`"processed_data.csv, summary.txt"`	Current file name*

*Note: If output is omitted, it defaults to the name of the file containing the annotation. This ensures nodes can be connected in workflows.

Node Types and Shapes

putior uses a data-centric approach with workflow boundaries as special control elements:

Data Processing Nodes: - "input" - Data sources, APIs, file readers → Stadium shape ([text]) - "process" - Data transformation, analysis → Rectangle [text]
- "output" - Final results, reports, exports → Subroutine [[text]] - "decision" - Conditional logic, branching → Diamond text

Workflow Control Nodes: - "start" - Workflow entry point → Stadium shape with orange styling - "end" - Workflow termination → Stadium shape with green styling

Workflow Boundaries

Control the visualization of workflow start/end points with show_workflow_boundaries:

# Special workflow boundary styling (default)
put_diagram(workflow, show_workflow_boundaries = TRUE)

# Regular nodes without special workflow styling
put_diagram(workflow, show_workflow_boundaries = FALSE)

With boundaries enabled (default): - node_type:"start" gets distinctive orange styling with thicker borders - node_type:"end" gets distinctive green styling with thicker borders

With boundaries disabled: - Start/end nodes render as regular stadium shapes without special colors

Example Annotations

R Scripts:

#put id:"load_sales_data", label:"Load Sales Data from API", node_type:"input", output:"raw_sales.csv, metadata.json"

#put id:"validate_data", label:"Validate and Clean Data", node_type:"process", input:"raw_sales.csv", output:"clean_sales.csv"

#put id:"generate_report", label:"Generate Executive Summary", node_type:"output", input:"clean_sales.csv, metadata.json", output:"executive_summary.pdf"

Python Scripts:

#put id:"collect_data", label:"Collect Raw Data", node_type:"input", output:"raw_data.csv"

#put id:"train_model", label:"Train ML Model", node_type:"process", input:"features.csv", output:"model.pkl"

#put id:"predict", label:"Generate Predictions", node_type:"output", input:"model.pkl, test_data.csv", output:"predictions.csv"

Multiple Annotations Per File:

# analysis.R
#put id:"create_summary", label:"Calculate Summary Stats", node_type:"process", input:"processed_data.csv", output:"summary_stats.json"
#put id:"create_report", label:"Generate Sales Report", node_type:"output", input:"processed_data.csv", output:"sales_report.html"

# Your R code here...

Workflow Entry and Exit Points:

# main_workflow.R
#put id:"workflow_start", label:"Start Analysis Pipeline", node_type:"start", output:"config.json"

#put id:"workflow_end", label:"Pipeline Complete", node_type:"end", input:"final_report.pdf"

Workflow Boundary Examples:

# Complete pipeline with boundaries
#put id:"pipeline_start", label:"Data Pipeline Start", node_type:"start", output:"raw_config.json"
#put id:"extract_data", label:"Extract Raw Data", node_type:"process", input:"raw_config.json", output:"raw_data.csv"
#put id:"transform_data", label:"Transform Data", node_type:"process", input:"raw_data.csv", output:"clean_data.csv"
#put id:"pipeline_end", label:"Pipeline Complete", node_type:"end", input:"clean_data.csv"

Generated Workflow with Boundaries:

flowchart TD
    pipeline_start([Data Pipeline Start])
    extract_data[Extract Raw Data]
    transform_data[Transform Data]
    pipeline_end([Pipeline Complete])

    pipeline_start --> extract_data
    extract_data --> transform_data
    transform_data --> pipeline_end

    classDef startStyle fill:#e8f5e8,stroke:#2e7d32,stroke-width:3px,color:#1b5e20
    classDef processStyle fill:#ede9fe,stroke:#7c3aed,stroke-width:2px,color:#5b21b6
    classDef endStyle fill:#ffebee,stroke:#c62828,stroke-width:3px,color:#b71c1c
    class pipeline_start startStyle
    class extract_data,transform_data processStyle
    class pipeline_end endStyle

Supported File Types

putior automatically detects and processes these file types: - R: .R, .r - Python: .py - SQL: .sql - Shell: .sh - Julia: .jl

🛠️ Advanced Usage

Directory Scanning

# Scan current directory
workflow <- put(".")

# Scan specific directory
workflow <- put("./src/")

# Recursive scanning (include subdirectories)
workflow <- put("./project/", recursive = TRUE)

# Custom file patterns
workflow <- put("./analysis/", pattern = "\\.(R|py)$")

# Single file
workflow <- put("./script.R")

Debugging and Validation

# Include line numbers for debugging
workflow <- put("./src/", include_line_numbers = TRUE)

# Disable validation warnings
workflow <- put("./src/", validate = FALSE)

# Test annotation syntax
is_valid_put_annotation('#put id:"test", label:"Test Node"')  # TRUE
is_valid_put_annotation("#put invalid syntax")                 # FALSE

UUID Auto-Generation

When you omit the id field, putior automatically generates a unique UUID:

# Annotations without explicit IDs
#put label:"Load Data", node_type:"input", output:"data.csv"
#put label:"Process Data", node_type:"process", input:"data.csv"

# Extract workflow - IDs will be auto-generated
workflow <- put("./")
print(workflow$id)
# [1] "a1b2c3d4-e5f6-7890-abcd-ef1234567890"
# [2] "b2c3d4e5-f6a7-8901-bcde-f23456789012"

This feature is perfect for: - Quick prototyping without worrying about unique IDs - Temporary workflows where IDs don’t matter - Ensuring uniqueness across large codebases

Note: If you provide an empty id (e.g., id:""), you’ll get a validation warning.

Tracking Source Relationships

When you have a main script that sources other scripts, annotate them to show the sourcing relationships:

# main.R - sources other scripts
#put label:"Main Workflow", input:"utils.R,analysis.R", output:"results.csv"
source("utils.R")     # Reading utils.R into main.R
source("analysis.R")  # Reading analysis.R into main.R

# utils.R - sourced by main.R
#put label:"Utility Functions", node_type:"input"
# output defaults to "utils.R"

# analysis.R - sourced by main.R, depends on utils.R
#put label:"Analysis Functions", input:"utils.R"
# output defaults to "analysis.R"

This creates a diagram showing: - utils.R → main.R (sourced into) - analysis.R → main.R (sourced into) - utils.R → analysis.R (dependency)

🔄 Self-Documentation: putior Documents Itself!

As a demonstration of putior’s capabilities, we’ve added PUT annotations to putior’s own source code. This creates a beautiful visualization of how the package works internally:

# Extract putior's own workflow
workflow <- put("./R/")
put_diagram(workflow, theme = "github", title = "putior Package Internals")

Result:

---
title: putior Package Internals
---
flowchart TD
    put_entry([Entry Point - Scan Files])
    process_file[Process Single File]
    parser[Parse Annotation Syntax]
    convert_df[Convert to Data Frame]
    diagram_gen[Generate Mermaid Diagram]
    node_defs[Create Node Definitions]
    connections[Generate Node Connections]
    output_handler([Output Final Diagram])

    %% Connections
    put_entry --> process_file
    process_file --> parser
    parser --> convert_df
    convert_df --> diagram_gen
    diagram_gen --> node_defs
    node_defs --> connections
    connections --> output_handler

    %% Styling
    classDef processStyle fill:#ede9fe,stroke:#7c3aed,stroke-width:2px,color:#5b21b6
    class process_file processStyle
    class parser processStyle
    class convert_df processStyle
    class diagram_gen processStyle
    class node_defs processStyle
    class connections processStyle
    classDef startStyle fill:#fef3c7,stroke:#d97706,stroke-width:3px,color:#92400e
    class put_entry startStyle
    classDef endStyle fill:#dcfce7,stroke:#16a34a,stroke-width:3px,color:#15803d
    class output_handler endStyle

This self-documentation shows the two main phases of putior: 1. Parsing Phase: Scanning files → extracting annotations → converting to workflow data 2. Diagram Generation Phase: Taking workflow data → creating nodes/connections → outputting diagram

To see the complete data flow with intermediate files, run:

put_diagram(workflow, show_artifacts = TRUE, theme = "github")

🤝 Contributing

Contributions welcome! Please open an issue or pull request on GitHub.

Development Setup:

git clone https://github.com/pjt222/putior.git
cd putior

# Install dev dependencies
Rscript -e "devtools::install_dev_deps()"

# Run tests
Rscript -e "devtools::test()"

# Check package
Rscript -e "devtools::check()"

📄 License

This project is licensed under the MIT License - see the LICENSE file for details.

📊 How putior Compares to Other R Packages

putior fills a unique niche in the R ecosystem by combining annotation-based workflow extraction with beautiful diagram generation:

Package	Focus	Approach	Output	Best For
putior	Data workflow visualization	Code annotations	Mermaid diagrams	Pipeline documentation
CodeDepends	Code dependency analysis	Static analysis	Variable graphs	Understanding code structure
DiagrammeR	General diagramming	Manual diagram code	Interactive graphs	Custom diagrams
visNetwork	Interactive networks	Manual network definition	Interactive vis.js	Complex network exploration
dm	Database relationships	Schema analysis	ER diagrams	Database documentation
flowchart	Study flow diagrams	Dataframe input	ggplot2 charts	Clinical trials

Key Advantages of putior

📝 Annotation-Based: Workflow documentation lives in your code comments
🔄 Multi-Language: Works across R, Python, SQL, Shell, and Julia
📁 File Flow Tracking: Automatically connects scripts based on input/output files
🎨 Beautiful Output: GitHub-ready Mermaid diagrams with multiple themes
📦 Lightweight: Minimal dependencies (only requires tools package)
🔍 Two Views: Simple script connections + complete data artifact flow

🙏 Acknowledgments

Built with Mermaid for beautiful diagram generation
Inspired by the need for better code documentation and workflow visualization
Thanks to the R community for excellent development tooling

👥 Contributors

Philipp Thoss (@pjt222) - Primary author and maintainer
Claude (Anthropic) - Co-author on 38 commits, contributing to package development, documentation, and testing

Note: While GitHub’s contributor graph only displays primary commit authors, Claude’s contributions are properly attributed through Co-Authored-By tags in the commit messages. To see all contributions, use: git log --grep="Co-Authored-By: Claude"

putior stands on the shoulders of giants in the R visualization and workflow ecosystem:

CodeDepends by Duncan Temple Lang - pioneering work in R code dependency analysis
targets by William Michael Landau - powerful pipeline toolkit for reproducible computation
DiagrammeR by Richard Iannone - bringing beautiful graph visualization to R
ggraph by Thomas Lin Pedersen - grammar of graphics for networks and trees
visNetwork by Almende B.V. - interactive network visualization excellence
networkD3 by Christopher Gandrud - D3.js network graphs in R
dm by energie360° AG - relational data model visualization
flowchart by Adrian Antico - participant flow diagrams
igraph by Gábor Csárdi & Tamás Nepusz - the foundation of network analysis in R

Each of these packages excels in their domain, and putior complements them by focusing specifically on code workflow documentation through annotations.

Made with ❤️ for polyglot data science workflows across R, Python, Julia, SQL, Shell, and beyond

putior

🌟 Key Features

📦 Installation

🚀 Quick Start

Step 1: Annotate Your Code

Step 2: Extract and Visualize

📈 Common Data Science Pattern

Modular Workflow with source()

📊 Visualization Examples

Basic Workflow

Advanced Data Science Pipeline

📋 Using the Diagrams

Embedding in Documentation

Saving and Sharing

🔧 Visualization Modes

Workflow Boundaries Demo

Simple Mode (Default)

Artifact Mode (Complete Data Flow)

Comparison Example

Key Differences

File Labeling

🎨 Theme System

Theme Overview

Theme Examples

When to Use Each Theme

Pro Tips

Theme Usage Examples

🔧 Customization Options

Flow Direction

Node Labels

File Connections

Styling Control

Workflow Boundaries

Output Options

📝 Annotation Reference

Basic Syntax

Alternative Formats (All Valid)

Annotations

Optional Annotations

Node Types and Shapes

Workflow Boundaries

Example Annotations

Supported File Types

🛠️ Advanced Usage

Directory Scanning

Debugging and Validation

UUID Auto-Generation

Tracking Source Relationships

🔄 Self-Documentation: putior Documents Itself!

🤝 Contributing

📄 License

📊 How putior Compares to Other R Packages

Key Advantages of putior

🙏 Acknowledgments

👥 Contributors

🌟 Shoutout to Related R Packages
